As ­flexo settles into the 21st century after surging ahead on the back of laser development, it is becoming more apparent that simply ‘cleaning’ the anilox is no longer good enough. The process has reached a pivotal point with increased screen counts and laser engraved plates pushing ­flexo into a new era.

However, underneath the drive for improved print quality lies a fundamental issue – cleaning the anilox, safely, fully, and consistently. Flexo’s new paradigm is “Anilox Control”- ensuring the roll is used in such a way to deliver the very best results through stringent care, maintenance, and management. But with cell walls now down to 2-3µ wide, the choice of how to achieve this is thinning.

What is actually meant by “clean”?

The word has such a wide scope. If the roll is not returned to 100 percent of its full available volume, then it’s not clean, pure, and simple. “Cleaning” is simply inadequate if we want to take full advantage of our high screen aniloxes. Why invest in a set of 1200lpi anilox rolls if you do not have the ability to get them 100 percent clean on a regular basis?

By keeping the anilox 100 percent clean you can gain control over the process, the output and as such, the profit, a mantra that is simplistic but very true. The process of ­flexo is found in the pre-press. If you control what goes into the press you inevitably control what comes out and by consistently rendering the roll 100 percent clean, six tangible, cost-saving benefits will be achieved:

  1. No requirement to ever over-pigment inks (unless to compensate for a heavily worn anilox)
  2. Quicker and more consistent make-ready times, leading to…
  3. Greatly reduced waste;
  4. Higher and more consistent print quality; and
  5. Higher production run-hours.
  6. Easier anilox inventory management (through the regular use of a quality control system such as Troika’s AniCam)

All of the above lead to an improved ROI on the aniloxes, the cleaning system and the press. ­

The past 30 years have seen methods of anilox cleaning develop then disappear, not because they weren’t producing results, but due to anilox technology itself changing. No sooner was a system produced that could clean e.g. 600lpi rolls the screen counts jumped to 1000lpi, which the system wasn’t designed for. This­ happened with soda blasting and polymer bead blasting for example. ­

The same is occurring today with jet-wash systems and laser cleaners, as the requirements and standards in terms of cleaning performance, environmental/ health and safety requirements of the industry simply cannot be met by these methods.

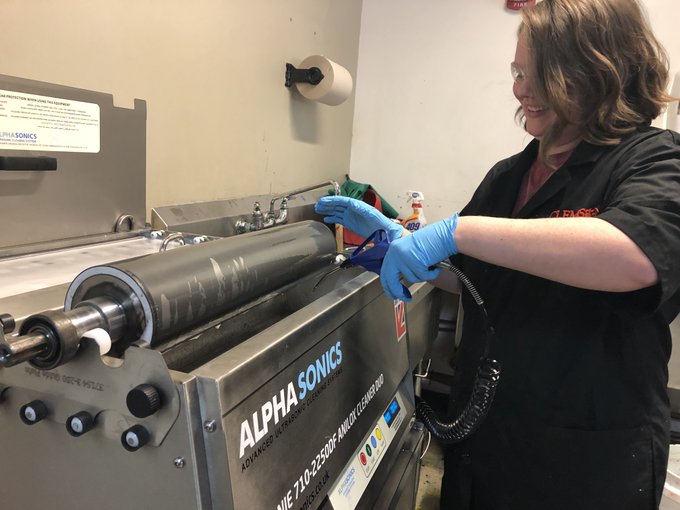

To overcome the issue of loss of process control Alphasonics has developed Alphasound, Betasound, and Active Cavitation technologies that have pioneered the safe and effective regular cleaning of aniloxes, no matter what the screen count, anilox manufacturer, or regularity of cleaning.

Gone are the days when anilox development can outstrip the ability to clean safely and consistently. Advanced ultrasonics is guaranteed to render the aniloxes 100 percent clean with complete consistency, is flexible, safe and effective across the whole screen count range, plus screen counts yet to come.

So, what about future flexo?

In February 2020 a high-end press manufacturer carried out independent trials to determine what system delivered the best cleaning results on their aniloxes. Alphasonics ‘Advanced Ultrasonics package of technology came first, Laser came second and Jetwash third. ­ These were completely independent results that confirm the above. ­The anilox truly is the heart of the process. Look after your heart and it will pay you back tenfold.
